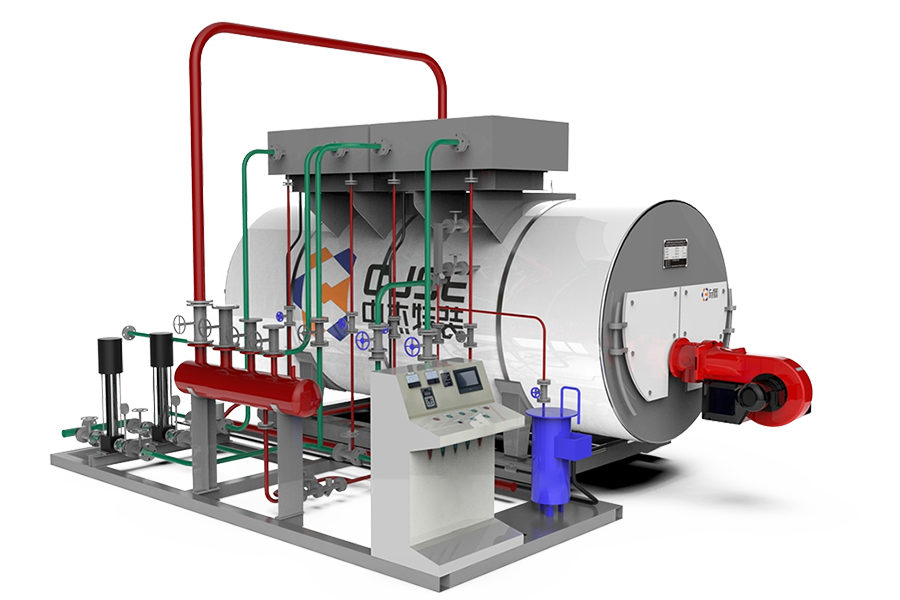

WNS series oil/gas fired hot water boiler

Pressure grade: ≤10MPaSpecifications: 0.35-14MW Available fuel:Natural gas,heavy oil,lpg,biogas,oil,gas,etc.
       Applicated Industry:widely used in heating, bathing and domestic hot water in hotels, schools, hospitals, residential areas, etc.

INTRODUCTION

Shandong Zhongjie Special Equipment Co., Ltd

The WNS hot water boiler has the following characteristics:
1.Large heating area, low exhaust temperature and high thermal efficiency;
2.Large heating area, low exhaust temperature and high thermal efficiency;
3.The smoke emission concentration is low, which meets the requirements of national class 1 Areas;
4.Boiler automatic operation, Chinese and English display, automatic manual switching;
5.The detection, adjustment, and link protection functions are complete. lt has automatic furnace purging program, flameout protection and automatic protection when the gaspressure is higher or lower than the set value, and has an over-temperature alarm function, which can automatically adjust the combustion according to the thermal load, so it is more energy-saving and safer;
6.Boiler with color steel outer packaging, beautiful shape.

★★★ Product parameters ★★★
Model/ItemRated thermal power(MW)Rated outlet pressure(MPa)Rated return water temperature(℃)Rated supply water temperature(℃)Circulation of heat exchange area(m³)Circulating flow
WNS0.350.350.7709520.512
WNS0.70.70.7709546.524
WNS1.41.40.770956048
WNS2.12.10.7709594.172
WNS2.82.80.7709512496
WNS4.24.20.7/1.07095/115168.5144/80
WNS5.65.60.7/1.07095/115235.5192/106
WNS7.070.7/1.07095/115295.8240/133
WNS10.510.51.0/1.2570115/130454200/150
WNS14141.0/1.2570115/130591266/200

*  The above product data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, all data interpretation rights involved in this website belong to CJSE.

PRODUCT ADVANTAGES

Shandong Zhongjie Special Equipment Co., Ltd


① Various fuels applicable


② 100% ultrasonic testing of raw materials


③ 100% weld X-ray testing

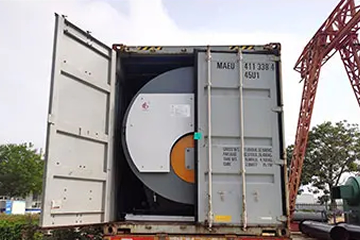

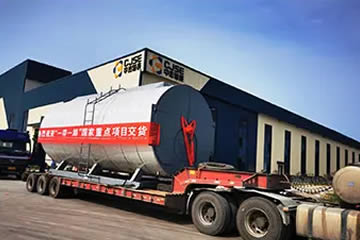

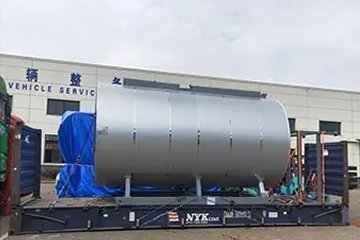

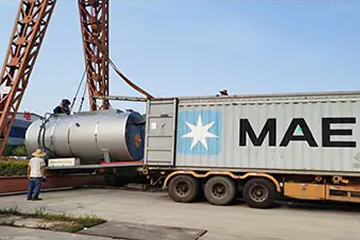

BOILER SHIPMENT

Shandong Zhongjie Special Equipment Co., Ltd


OUR SERVICE

Shandong Zhongjie Special Equipment Co., Ltd

CJSE
  • > Since1984
    Provide OEM/ODM Service Slected Brand Manufacturer

  • > Free
    Technical Solution Support 3D esign R&D Centers

  • > Contract Signing & Payment
    EXW FOB FVA CFR CIF CIP CPT,T/T,L/C,MoneyGram,Credit Card

  • > Construction Drawing Design
    240+ Enginering Technicians

  • > Production Proces
    60+Production Line, 1000+Employee

  • > Shipment of goods
    ways of transportation Sea / Land / railway / airline transportation services

WHY CHOOSE US

Shandong Zhongjie Special Equipment Co., Ltd

CJSE
  • > Safe
    we are commited to man-ufacturing;only the most safe and the best qualityproducts

  • > Professional
    40Year experience; 3+Design R&D Centers; 240+engineering techni-cians

  • > Certificates
    ASME,CE,EAC,ISO,BV,SGS,TUV

  • > Quality
    183 quality conttrol points;224 WPS,122 WPQR 100; control program files; 56 process procedures

  • > Guaranteed
    20 years design service life waranty within 365 days

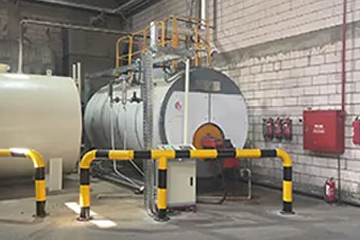

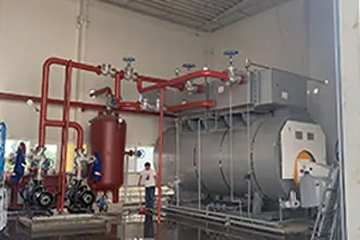

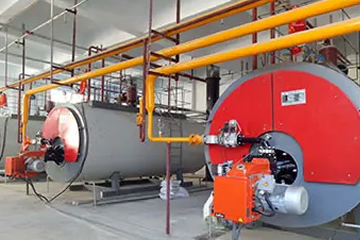

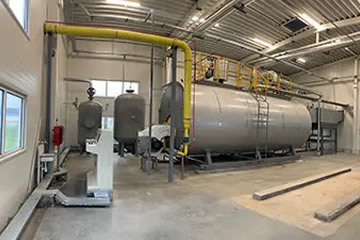

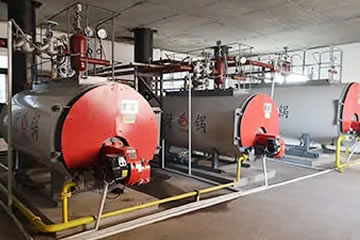

ENGINEERING CASES
