DZL series biomass fired steam boiler

Pressure grade: ≤10MPaSpecifications:1-65 t/h Available fuel:Paper sludge, wood pellet, wood chip, rice husk, sawdust, palm fibre, coconut shell, palm shell, coconut fiber, etc. Applicated Industry:widely used in various industrial industry, such as textile, chemical, paper, food, agricultural products processing industry, etc.

INTRODUCTION

Shandong Zhongjie Special Equipment Co., Ltd

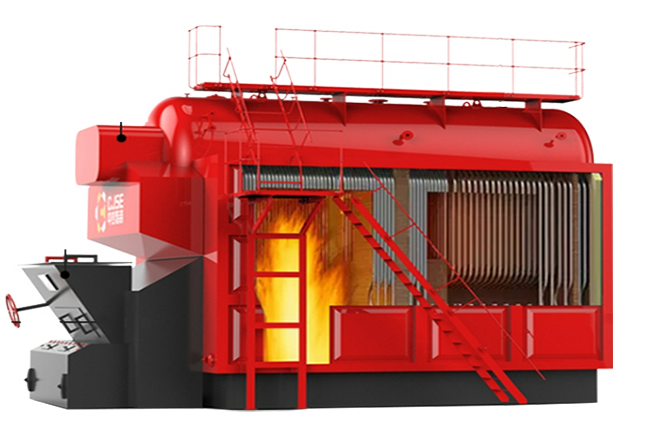

DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for bituminous coal combustion,and their performance characteristics are as follows:
1.The use of high-strength large grate pieces is suitable for the transportation and combustion of biomass fuel. The installation of roller device for large grate can improve the safety of grate and facilitate combustion adjustment;
2.The unique feeding device has strong fuel adaptability to prevent front combustion and upper combustion of furnace fire;
3.The unique secondary air supply device blows the flame back to prevent the flame from channeling into the hopper. And strengthen flue gas disturbance, promote combustion and prevent the generation of black smoke;
4.The heating surface and combustion device are reasonably arranged, and the thermal efficiency of the boiler is increased by 2% ~ 5%;
5.Compact structure, small installation dimension, shorten installation period and reduce the cost of boiler room.


★★★ Product parameters ★★★
Model/ItemRated Steam capacity(T/H)Rated Working Pressure(Mpa)Design Thermal Efficiency(%)Feed Water Temperature(℃)Boiler Transport Weight (T)
DZL2-1.0/1.25-SCI21.0/1.2584.6/84.522016.5
DZL4-1.0/1.25/1.6-SCI41.0/1.25/1.683.8/83.612031
DZL6-1.25/1.6-SCI61.25/1.683.52/83.22038.6
DZL8-1.25/1.6-SCI81.25/1.682.7/82.362021/15
DZL10-1.25/1.6-SCI101.25/1.684.23/84.110523/17
DZL15-1.25/1.6-SCI151.25/1.684.7/84.410524/21
DZL20-1.25/1.6-SCI201.25/1.684.9/84.510530
DZL30-1.25/1.6-SCI301.25/1.687.9/87.410530.1
DZL35-1.25/1.6-SCI351.25/1.687.8/87.310535.2
DZL40-1.25/1.6-SCI401.25/1.687.8/87.310538.6

*  The above product data is for reference only. Please refer to the actual product and product manual for specific information. Unless otherwise specified, all data interpretation rights involved in this website belong to CJSE.

PRODUCT ADVANTAGES

Shandong Zhongjie Special Equipment Co., Ltd


① Various fuels applicable


② 100% ultrasonic testing of raw materials


③ 100% weld X-ray testing



BOILER SHIPMENT

Shandong Zhongjie Special Equipment Co., Ltd


OUR SERVICE

Shandong Zhongjie Special Equipment Co., Ltd

CJSE
  • > Since1984
    Provide OEM/ODM Service Slected Brand Manufacturer

  • > Free
    Technical Solution Support 3D esign R&D Centers

  • > Contract Signing & Payment
    EXW FOB FVA CFR CIF CIP CPT,T/T,L/C,MoneyGram,Credit Card

  • > Construction Drawing Design
    240+ Enginering Technicians

  • > Production Proces
    60+Production Line, 1000+Employee

  • > Shipment of goods
    ways of transportation Sea / Land / railway / airline transportation services

WHY CHOOSE US

Shandong Zhongjie Special Equipment Co., Ltd

CJSE
  • > Safe
    we are commited to man-ufacturing;only the most safe and the best qualityproducts

  • > Professional
    40Year experience; 3+Design R&D Centers; 240+engineering techni-cians

  • > Certificates
    ASME,CE,EAC,ISO,BV,SGS,TUV

  • > Quality
    183 quality conttrol points;224 WPS,122 WPQR 100; control program files; 56 process procedures

  • > Guaranteed
    20 years design service life waranty within 365 days
